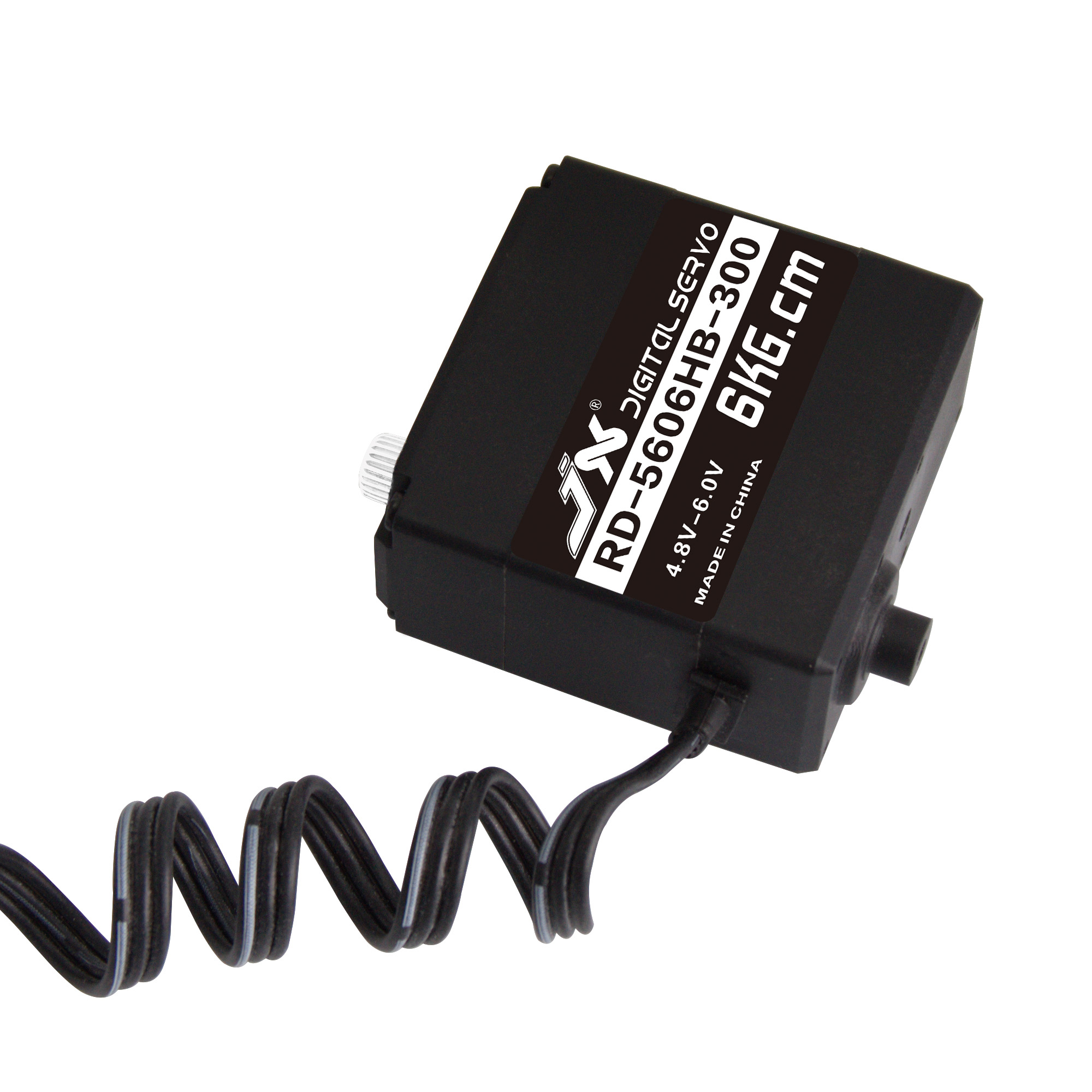

RD-5606HB-300  6kg.cm, 300° Digital, plastic gear robot servo

RD-5606HB-300 6kg.cm, 300° Digital, plastic gear robot servo

Model:   RD-5606HB-300

Brand:JX servo

Detailed introduction

FEATURE:
-- High performance robot servo

-- High quality core motor

-- 300° angle


SPECIFICATIONS:

Dead band: 4μs
Neutral point: 1500μs
Pulse width:500μs-2500μs
Motor: Core
Max angle:300°±2°
Frequence: 330hz
Operating Voltage:4.8V-6V
Operating Speed(4.8V): 0.14sec/60°

Operating Speed(6.0V): 0.12sec/60°
Stall torque(4.8V): 5.50kg.cm

Stall torque(6.0V): 6.20kg.cm

Demension: 40.5X20.3X40mm
Weight:  47 g
Connector Wire Length: JR  200mm
Spline Count: 25T
